In an LED lighting upgrade spanning the whole site, the oil refinery utilises not only hazardous area lighting, but also dedicated street and road lighting, lighting for transport, car parks and other general area lighting - and all from Raytec.

The oil refinery wanted to improve security and safety on site by upgrading to high performance, reliable and energy efficient LED lighting. But with high risk areas across the site, the refinery required dedicated hazardous area lighting, in addition to standard lighting for the rest of the site.

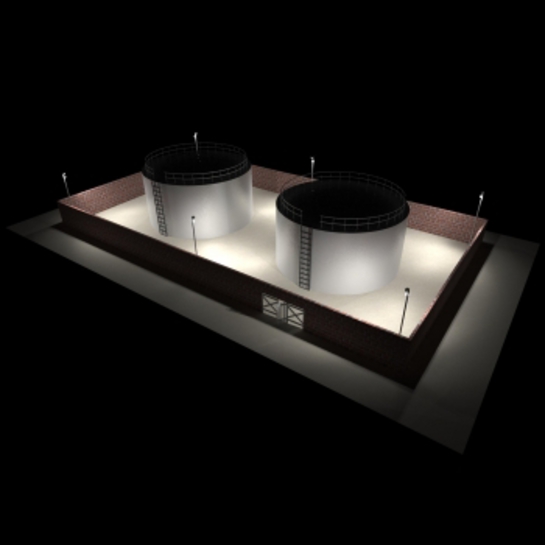

The refinery chose Raytec’s Spartan range of hazardous area floodlights to protect multiple oil storage tanks and tanker loading areas. Spartan is ATEX compliant and IECEx certified for all Zone 1 and Zone 2 hazardous areas. It is enclosed in marine grade aluminium, and employs Raytec’s field-proven, long-life LED technology, to deliver high quality illumination for the safety and security of vehicles and personnel on site.

All hazardous area products and their components are regularly serviced and inspected. But Spartan’s maintenance friendly design has made this much easier, quicker and less costly for the oil refinery; especially considering the remote location of the site.

Spartan has a modular design with removable PSU and LED modules for instant access and inspection. The Spartan PSU can also be located remotely. This has allowed the refinery to position it at ground level up to 100m away from the light fitting in difficult to access areas.

Spartan delivers the highest performance and energy efficiency whilst ensuring the maximum light output - up to 9,000 lumens. Spartan floodlights use half the number of LEDs compared to traditional solutions and require a maximum of only 120W.

Its Coolxtrude thermal management system is engineered to deliver outstanding power whilst ensuring an operational life of 10 years plus. It delivers the coolest running LED technology at all times, with heat dissipation up to 60% better than other LED light fittings. Spartan has a wide operating temperature range of -52°C to + 55°C, and is rated for the most sensitive environments - up to T6.

“New Spartan floodlights set the benchmark in flexibility and performance in the hazardous area environment"says Barry Thompson, Head of Raytec’s Hazardous Area Division. “Spartan is the most reliable and maintenance friendly lighting solution for such harsh and remote environments where failure is not an option".

Spartan is a full floodlight family, available in 3 sizes, white-light, infrared and emergency versions. Spartan linear and bulkhead products are also available on request.
