Integration partners create solution for complex Circular Quay project

Lillington, NC (USA) and Sydney, Australia

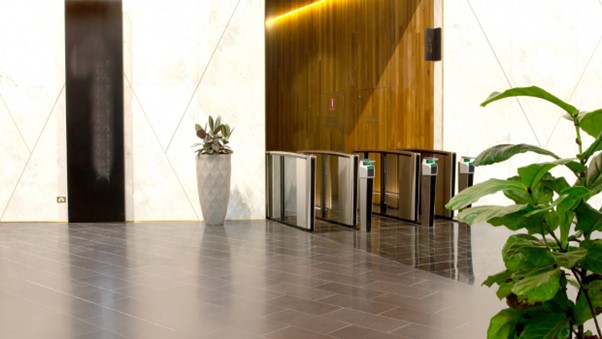

The Dexus Wholesale Property Fund has upgraded the Gateway Building in Sydney’s Circular Quay to feature entry security measures to protect employees, visitors and valuable data. The solution was created by integrating Boon Edam Speedlane Swing optical turnstiles, Idemia’s Morphowave touchless fingerprint scanners, Schindler’s elevator dispatch and Honeywell’s access control technology.

Gateway’s access solution allows authorised and registered tenants to simply wave their hand in the Morphowave touchless fingerprint scanner reader to enter the secure area through the turnstiles. Guests can sign in and register their finger pattern to become authorised to enter. Morphowave scans and verifies four fingerprints through a simple hand wave gesture, during which the sensor takes several 3D photos of the fingerprints to extract biometric data and compare with the authorized fingerprints stored in the device. If they match, the user is granted access. This process all happens in less than one second.

Each Morphowave reader is connected to Schindler’s Port Technology, which then receives the user’s credential data and conducts a cross-check with the building’s access control database. If the user is valid, a command is sent to the Boon Edam Lifeline Speedlane Swing to open its barriers. This interaction is surprisingly quick, with limited latency.

“Tenants have a duty of care to protect their employees and visitors as well as valuable data and intellectual property, and they need the cooperation and support of a responsible and innovative building manager such as Dexus to manage secure entry into the building,” said Michael Fisher, Managing Director, Boon Edam Australia.

A major part of the solution involves elevator destination control, whereby a user’s credentials are automatically assigned an elevator as they are verified and allowed access through the turnstile. This seamless integration was facilitated by an existing global partnership between Boon Edam and Schindler.

The partnership arranged for Schindler’s Port 4 mini technology to be embedded into the Speedlane Swing optical turnstiles at the manufacturing stage in the Boon Edam factory. Using an advanced algorithm and the integrated Schindler Port 4 mini elevator destination control for visual and audio feedback, an elevator is automatically assigned at the same time the turnstile is opening, allowing for optimum efficiency. The security is controlled by Honeywell’s access control system, integrated with Schindler’s Port Technology.

Honeywell has been managing the security and building management systems for the Gateway building since it was first opened in 1990. Honeywell Asia-Pacific Solution Architect Leader Rhys Crabb says early engagement at all stages and a commitment to a collaborative approach enabled Dexus to select the best available technologies.

“Dexus placed customer outcomes first and foremost in the project brief, ensuring the delivery of a product that provided tenants and visitors with a premium, modern and secure user experience that is flexible and easy to use,” said Crabb.

Mr. Stephen Hodge, Senior Project Manager, Dexus, added that “with so many stakeholders, and a strong need for reliability and quality, it was important that everyone knew the goals of the project and worked well together. I’m pleased to say that it was like a perfect jigsaw and everything came together smoothly. What was important to Dexus is that we were pushing the boundaries to create better experiences, but we’re only doing so with proven products. Boon Edam’s optical turnstiles have been installed globally and locally, and this gave us added confidence that they were the right product for this forward-looking project.”
