Monitoring such a large stadium is a huge challenge. With plenty of audience flow in and out of the stadium it is vitally important to ensure a secure environment for the safety of people, requiring security staff to keep an eye on every corner of the venue.

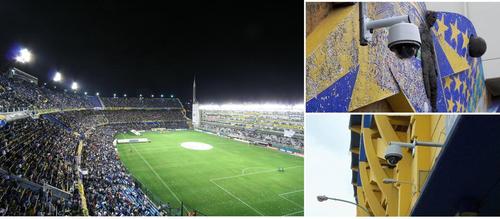

Boca Juniors decided to use Hikvision’s surveillance solution consisting of standalone DVRs, PTZ high-speed domes and color cameras to secure the stadium. These units allow the security staff to effectively monitor the on-site status throughout the stadium such as the football ground, entrances and exits.

The project is offering a 24/7 surveillance solution by using PTZ speed domes together with fixed units. Inside the stadium, the PTZ high speed domes were preferred for 360° monitoring. The PTZ domes offer high quality video in the resolution of 480 TVL as well as featuring 400°/s pan preset speed and 150°/s tilt preset speed, these allow the security staff to quickly track and zoom in on individuals to acquire details clearly, and take rapid action. By contrast, the fixed colour cameras were installed at the stadium entrances and exits.

Visitors can see the cameras and know someone is monitoring them. This acts as a deterrent against petty criminal acts such as vandalism, theft and sneaking in without a ticket. People are less likely to do so as they know that the video footage can be used as evidence. Quarrels or arguments among audiences during shows, concerts and other events would be observed as well.

As there are many monitoring points in different locations throughout the stadium, the surveillance system needs to support multi-channel video viewing to monitor the on-site status. To accommodate this, Hikvision supplied embedded DVRs that feature 16-channels video preview on one screen simultaneously. The DVRs also support video loop out on TV wall, enabling the security staff to have a clearer view on what is happening in the stadium through TV wall. In addition, with main and auxiliary video output, the DVRs can simultaneously support GUI operation and video preview (through auxiliary video output) for on-site status monitoring on a separate screen.

"Hikvision’s surveillance solution has a positive effect on protection of the stadium," said Lic. Christian Uriel Solano, President of Security One Argentina, the Hikvision’s distributor who is responsible for this project. "Now we can provide a more secured environment for people who come to events held in Estadio Alberto J. Armando stadium, that’s exactly what we are pursuing."
