This latest infrared smart dome integrates the functions of PTZ control, camera control, and built-in infrared lighting control. Although adopting all the latest technical specifications, it is simple in its mechanical design. It is able to perform random positioning and tracking as well as scanning to achieve a smart surveillance solution without any blind zones.

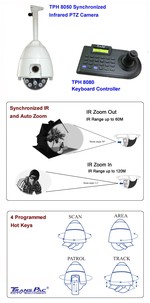

The TPH8050 smart dome is built with a patented infrared zoom in/out mechanism structure, as it synchronises the IR light function along side the camera's performance. The IR zoom is adjustable for a visible distance with a range of up to 120 metres by beam angle at 3.2-degrees, meanwhile it can cover up to 18-sq.mt of visible area. A range of 60 metres covers the visible area in 400-sq.mt whilst the IR zoom out is set at a 50-degree angle.

With this uniquely designed zoom in/out separated optical refractor system between the camera and IR lamps, it has the advantages of high reliability, good performance stability and solves the problems of interior reflections at night in all ambient conditions with very low maintenance required.

The TPH8080 keyboard controller is designed with 4 programmed keys for scan, area, patrol, and track- for easy user operation.
